Place of Origin:
China
Brand Name:
SOUNDON
Certification:
CE,CB,UN38.3,MSDS
Model Number:
SD-EV-72250
CAR POWER BATTERY SYSTEM With 72V250Ah NCM material prismatic cells battery
Specifications:
| Item | Tech Data | Remark | |
| Rated voltage/Capacity | 72V/250Ah | ||
| Voltage Working Range | 60V~84V(3.0V~4.2V) | ||
| Charge | Max Continuous Current | 150A | |
| Max Pulse Current | 330A | ≤30S | |
| Discharge | Max Continuous Current | 150A | |
| Max Pulse Current | 330A | ≤30S | |
| Battery Packs Capacity Working Range | SOC15%~100% | ||
| Working Temp. Range | -20℃~60℃ | ||
| Insulation | >2MΩ | ||
| Protection Level | IP67 | ||
| Battery Case Quantity | 1 | ||
| Total Weight | <175kg | ||
| Thermal Management System | Non compulsory | ||

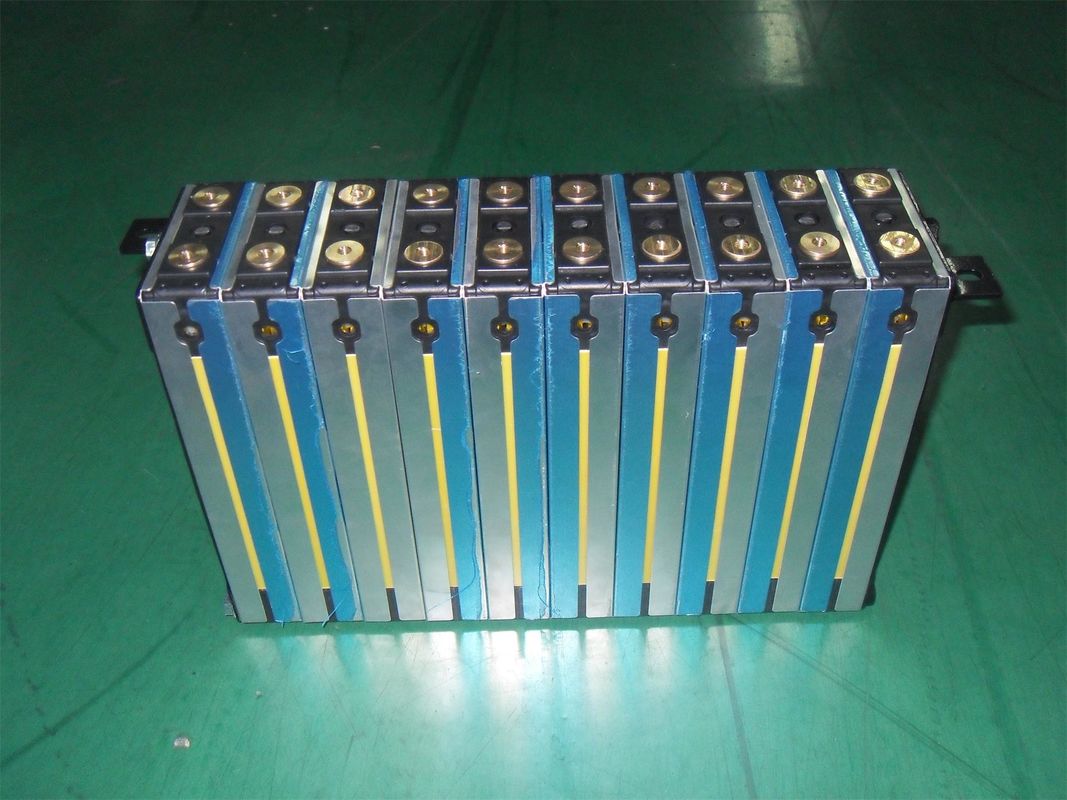

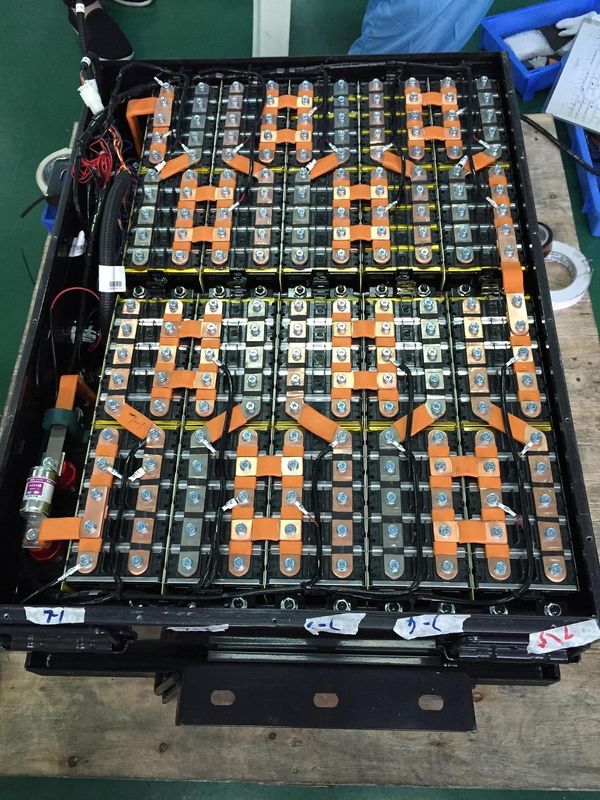

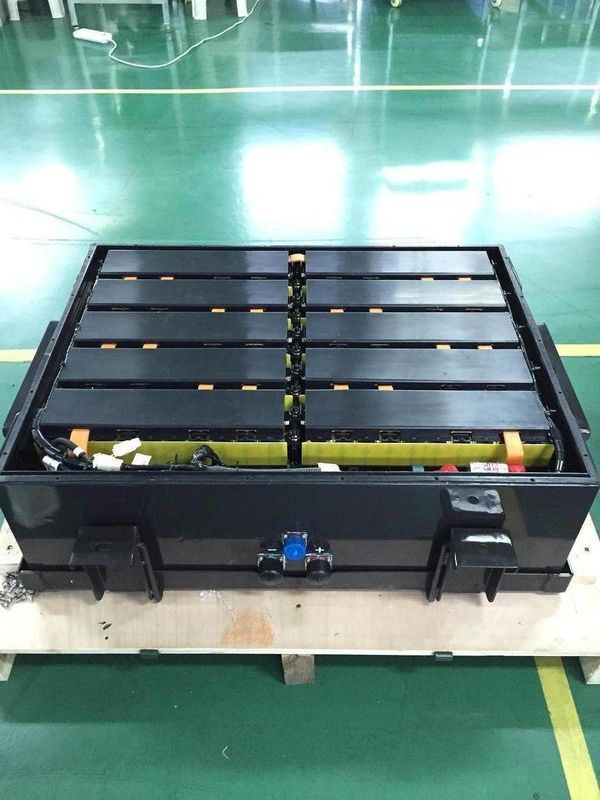

Battery pack Overall Structure
Characteristics:
High energy density
Wide range of working temperature
Ensured consistency and extension of battery pack life
Environmentally-friendly
Stable discharge voltage performance, good rate performance
Free customization and after-sales service
High safety level
Short time to take full charge
MSDS, CB certifications and standards of ROHS.
Company introduction :
13 years of lithium battery manufacture experience
392 Million USD Registered capital
2 million swuqre meters industrial park area
50000 tons NMC& LFP battery cathode material
6GWh lithium battery capacity
Over 500 R&D Team
A complete lithium industry chain from Cathode material ,battery cell ,BMS, battery pack to battery cycling
CE,UL,IEC,ARAI,UN38.3,MSDS,ROHS ,J2464 international certificates
ISO9000-2015, ISO14001,ISO/TS16949 system certificates
