Place of Origin:
China
Brand Name:
Soundon New Energy
Certification:
IEC/EN 62477, NFPA855, IEC/EN 62619, IEC/EN 60730, IEC/EN 63056, UL 1973, UL 9540A
Model Number:
Turtle 5

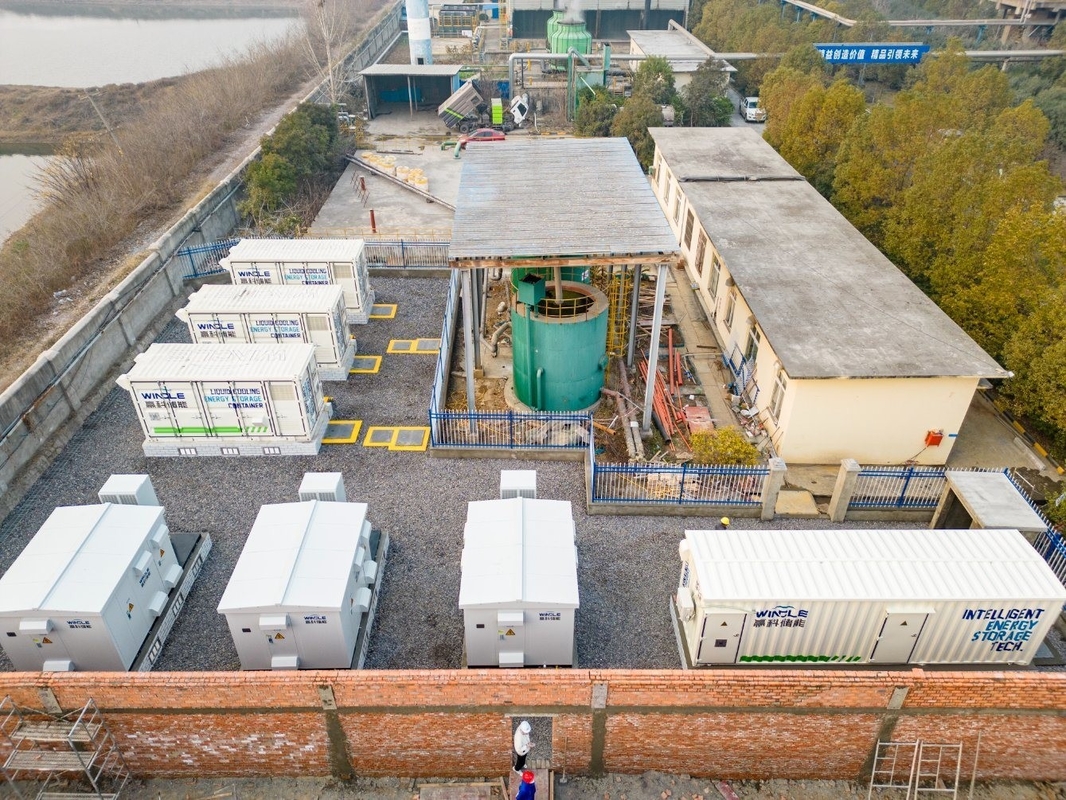

High Voltage 20FT Container 5MWh ESS For Grid-Side Connect And Back-Up Power
Product description
This 5MWh system consists of battery clusters (10 clusters, each cluster has 8 packs ) , PDU, DC combiner box, BMS, thermal management system, fire extinguishing system, etc. The system has external communication functions and can transmit data with external supporting HMI, PCS, fire protection and other equipment, and can continue to operate safely and stably for a long time.
Product Spec
| No. | Item | Spec | |
| 1 |
System |
Nominal Capacity(kWh) | 5016 |
| 2 | Max cycle efficiency | >89% | |
| 3 | Protection level | IP54 | |
| 4 | Auxiliary power supply | Self-powered /externally powered | |
| 5 | Working humidity range | 0～95% | |
| 6 | Working temperature range | -15～50ºC | |
| 7 | Max working altitude(m) | 4000 | |
| 8 | Cooling method | Smart liquid cooling | |
| 9 | Fire extinguishing configuration | Aerosol fire protection, temperature detection, smoke detection | |
| 10 | Communication protocol | RS485/CAN/以太网 | |
| 11 | Weight(T) | ≤43 | |
| 12 | Container size ( L × W × H) | 6058×2438×2896mm | |
| 13 |
DC parameter |
Max DC voltage | 1497.6V |
| 14 | Min DC voltage | 1164.8V | |
| 15 | DC side rated current | 1884A | |
| 16 | DC side maximum current | 2154A |
