Place of Origin:
China
Brand Name:
Soundon
Certification:
CE,ROHS UN38.3
Model Number:
SD-ESS-163KWh
160KWh Storage Battery Systems LiFePo4 For Commerical energy storage system

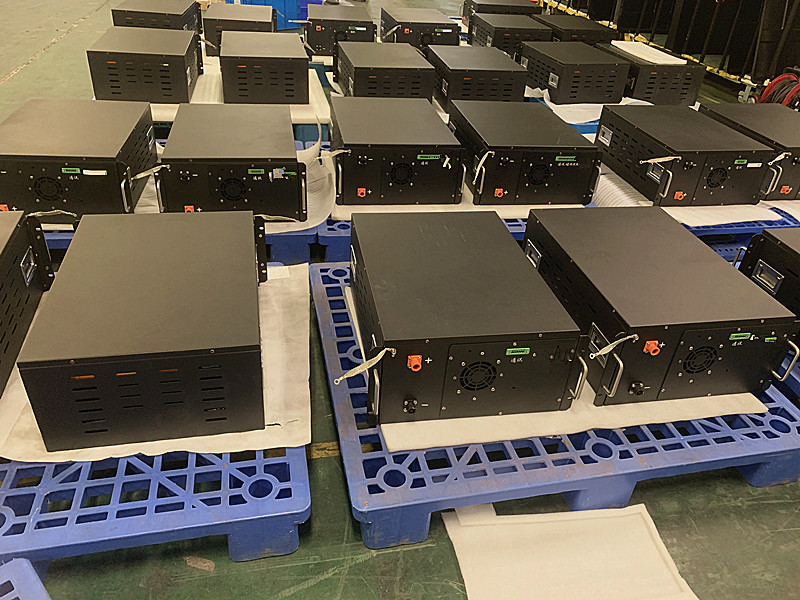

This energy storage system with 17PCS PACK and a PDU
Battery cell
| Capacity | 280Ah |
| Voltage | 3.2V |
| Charge cut-off voltage | 3.65V |
| Discharge cut-off voltage | 2V |
| Standard charge current | 0.5C |
| Standard discharge current | 0.5C |
| Max continuous charge current | 1C |
| Max continuous discharge current | 1C |
| Instantaneous charge current | 1.5C<30s |
| Instantaneous discharge current | 2C |
| Operating temperature | Charging :0~55℃ |
| Discharging :-20~55℃ | |
| Storage temperature | ≤1 month: -20~+45℃ |
| ＞1 month: -10~+35℃ | |
| cyclelife | >6000 times |
PACK Parameters
| Battery PACK | |
| Battery material | LFP |
| Battery cell | 280AH prismatic cell |
| Battery cell voltage | 3.2V |
| configuration | 1P*14S |
| voltage | 44.8V |
| Battery power | 12.5KWh |
| Working Temp | 0~50℃ |
| Storage Temp | -40~60℃ |
| Storage Humidity | RH<=95% |
| Altitude | 4000m |
| Cooling method | Air cooling |
| Cyclelife | >5000 times |
Battery Cabinet Spec
| Battery Cabinet configuration | 1P*14S*13S |
| Rated power | 163KWh |
| DOD | 90% |
| Rated voltage | 582V |
| Voltage range | 509V~664V |
| Cycle life | >5000 times |
| month self discharge | <3.5% |
| Rated discharge rate | 0.5C |
| Connection method | 快插 |
Application
Island micro grid, Power stations with new or distributed energy access; Small fire peak and frequency modulation power station Outdoor temporary heavy duty center, Load fluctuations of the factory, enterprise, business center etc.
Battery system
