Place of Origin:
China
Brand Name:
SOUNDON
Certification:
UN38.3, ROHS,MSDS,UL
Model Number:
SD-EV-72V300Ah

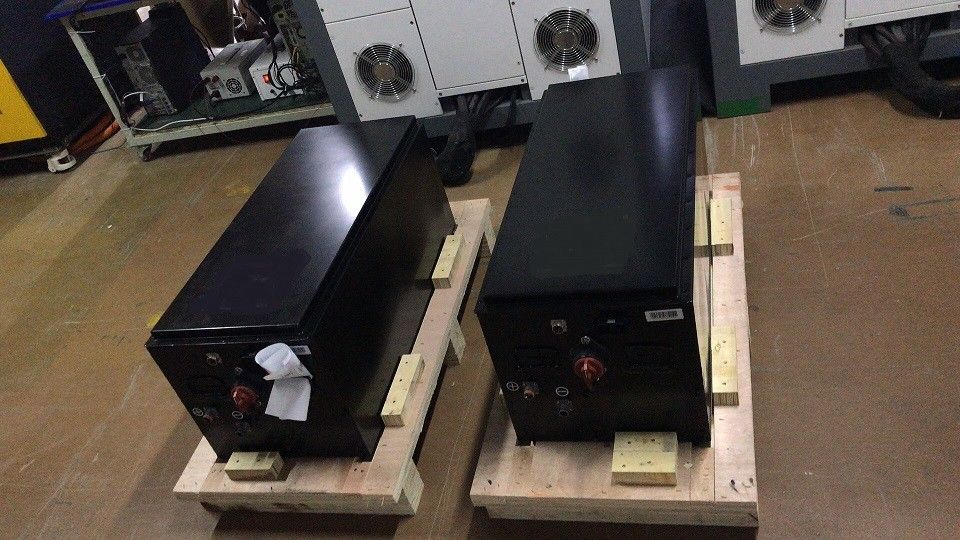

72V300AH UL NMC Pouch Cell Special Vehicle Battery With Fast Charge For Electric Farm Tractor
Battery Pack
| Project | Parameter |
| Voltage Range | 60V---84V(72V Rated ) |
| Battery System Whole Energy (KWH) (KWh)23±2℃,1/3C | Rated :21.6kWh |
| Battery System Whole Capacity(Ah) (Ah)23±2℃,1/3C | Rated :300 Ah |
| Battery system Working Temperature (℃) | Discharge-20~55℃,Charge -10~55℃ |
| Battery system Surrounding environment relative humidity | 5%~95% |
| Battery system storage Temperature |
-20～25℃(6 Month,50%SOC) -20～45℃(4 Month,50%SOC) -20～60℃(≤3 Month,50%SOC) |
| Battery system Max. charging current | <300A |
| Battery system Max. Instance discharging current (10s) | 900A |
| Battery system standard discharging current | 300A |
| Battery system instant discharging current (Max.) (30s) | 750A |
| IP Class | IP66 |
| Cycle Life | 2500(80%DOD,0.5C charge/1Cdischarge)at 25℃ |
| Cooling system | Air Cool |
Battery Module
| No. | Parameter |
| Cell Type | SEPNI-8688190(17.5AH) |
| Parallel/Series | 4P1S |
| Module Dimension(H*W*T) | 245× 97× 45.5(mm) |
| Module Rated Capacity | 70Ah |
| Module Rated Voltage | 3.6V |
| Module Density | ≈1.515Kg |
Soundon New Energy is professional manufacture for NMC battery with lamination technology which wide applied in Electric vehicle and Energy Storage System
Pouch cell Advantage
1, slight bending of electrodes can be accepted
2. the increment of thickness can be accepted
3. internal defects can be exposed.
4. spherical heat dissipation
5. PP packaging is safer than metal or plastic packaging
Pouch cell Feaure
1. Unique lithium battery of Lamination Technology with prismatic case
2. specilist for Electric vehicle and Energy storage battery cells in NMC , LI polymer with prismatic case
3. International Product certification : UN38.3,CB ,CE, Rohs ,UL certification
4. Company Quality Approvals : ISO9001,ISO14001,TS16949 quality system standard approved
Application :
