Place of Origin:
China
Brand Name:
Soundon
Certification:
UL,UN38.3,ROHS,MSDS,BIS,ARAI
Model Number:
SDDX-4870

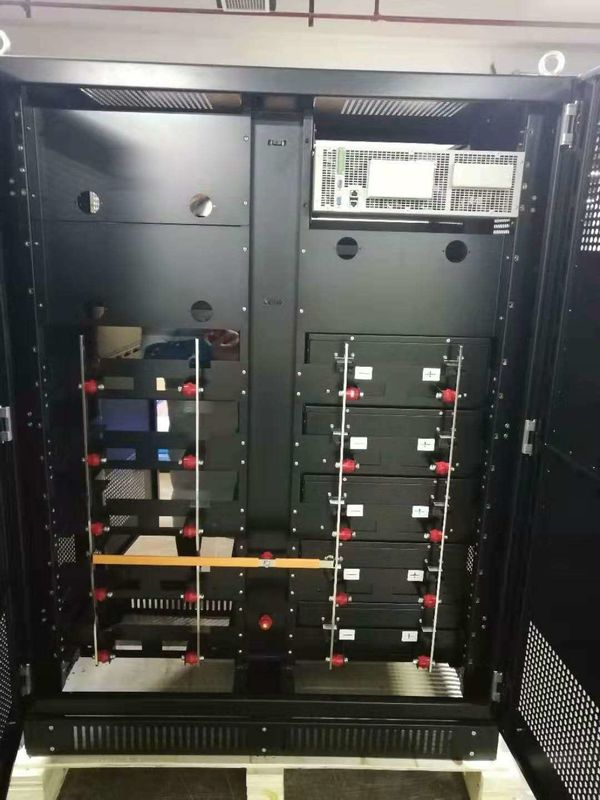

48V70Ah NMC With UL ,UN38.3 And CAN Communication Home Storage Battery For UPS
Specification :
| Parameters | |
| AC Parameter | |
| Battery Rated Energy | 32.76kWh |
| Rated Power | 7kW |
| AC Access | Single Phase 220V |
| Rated Grid Frequency | 50 Hz |
| Allowed Grid Frequency | 47.5 Hz～51.5 Hz |
| Total current distortion rate | ≤5% |
| System Efficiency | 85% |
| DC Parameter | |
| Battery type | NCM Lithium battery |
| Rated Capacity | ≥700Ah |
| Rated Voltage | 47.45V |
| Work Voltage | 39V～54.6V |
| System Discharge Efficiency |
95% |
| Weight(kg) | System: About 500kg |
| Dimension(mm) | 1200*640*1800 |
| IP Class | IP20 |
Function:
1) Balance function; Protect the cells from the imbalance and maintain the capacity of the battery cell to extend the life cycle.
2) Voltage detection of the cells; Provide the accurate voltage measurement of overcharging and discharging, at the same time, offer the reliable data for the equilibrium control strategy.
3) The multi point temperature collection of the singe module; Provide the same number of collection point as voltage, and strictly monitor the temperature to extend the life cycle.
4) Estimate the distributed SOC of every single battery pack series; Power control to every single battery pack series, and improve the capacity and life cycle of the module.
