Place of Origin:
China
Brand Name:
Soundon New Energy
Certification:
MSDS, UN38.3, CE, CB, IEC 62619
Model Number:
Star CL192Pro
Product description

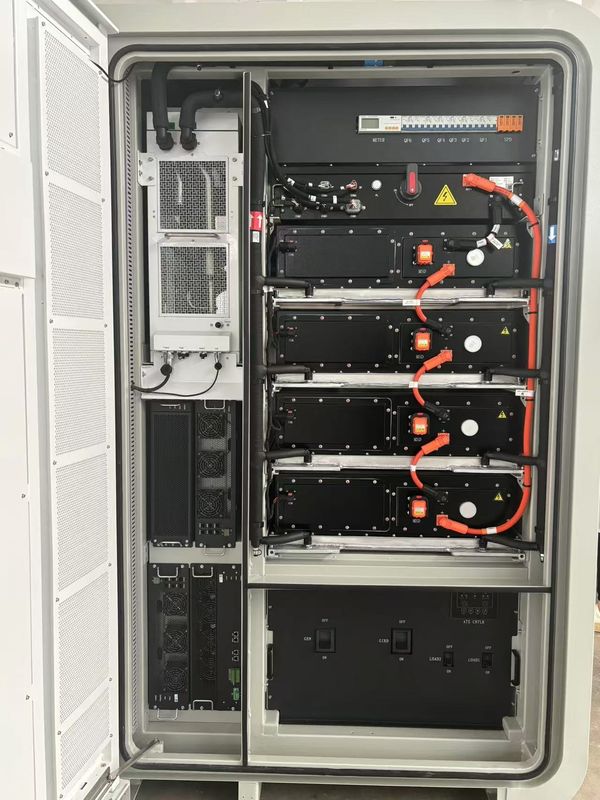

All in one 192KWh liquid cooling energy storage system cabinet
Outdoor energy storage cabinet parameters
| Category | Name | Parameter | |||
| 1 | System parameters | Rated energy (kWh) | 96.46 | 144.69 | 192.92 |
| 2 | Rated power (kW) | 60 | |||
| 3 | Protection level | IP54 | |||
| 4 | Auxiliary power supply | Self-powered/externally powered | |||
| 5 | Working humidity range | 10%～90% | |||
| 6 | Working temperature range (℃) | -30～55(＞45℃ derating) | |||
| 7 | Cabinet size (width × depth × height mm) | ( 1750 ±10)×( 1435 ±10)×( 2392 ±10) | |||
| 8 | Weight (kg) | 1900 ±100 | 2225 ±100 | 2 5 50±100 | |
| 9 | Maximum working altitude (m) | 1500 | |||
| 10 | Cooling method | Smart liquid cooling | |||
| 11 | Fire extinguishing | Aerosol firefighting | |||
| 12 | Communication | Ethernet | |||
| 13 | Protocol | MODBUS TCP/IP | |||
| 14 | Connection | Three-phase four-wire | |||
| 15 | AC parameters | Rated charge and discharge power (kW) | 60 | ||
| 16 | Maximum charge and discharge power (kW) | 72 (60S 25℃) | |||
| 17 | Rated charge and discharge current (A) | 87 | |||
| 18 | Rated grid voltage (V) | 400 | |||
| 19 | Allowable grid voltage range (V) | 300～440 | |||
| 20 | DC parameters | Maximum DC voltage (V) | 1000 | ||
| 21 | Minimum DC voltage (V) | 150 | |||
| 22 | DC voltage operating range (V) | 150 ～1000 | |||
| 23 | DC side maximum current (A) | 180 | |||
Applicaiton chart

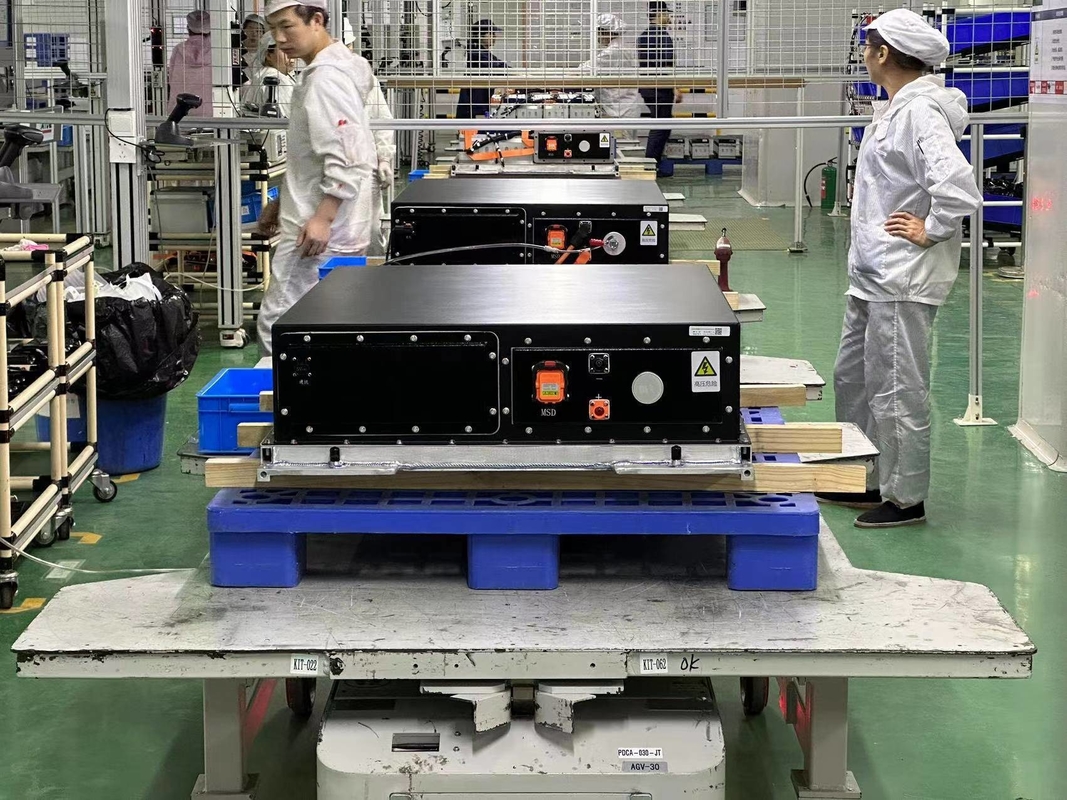

Battery Module parameters
| No. | Name | Specifications | Condition |
| 1 | Configuration | 1P48S | 1P48S |
| 2 | Nominal voltage | 153.6V | / |
| 3 | Voltage range | 120～175.2V | 2.5V to 3.65V |
| 4 | Nominal energy | 48.2kWh | 25℃±2,0.5C |
| 5 | Standard charge and discharge current | 157A | / |
| 6 | Maximum charge and discharge current | 201A | / |
| 7 | Installation method | Plug-in type | / |
| 8 | Charging temperature | 0～55 ℃ | / |
| 9 | Discharge temperature | -20～55 ℃ | / |
| 10 | Cooling method | Liquid cooling | / |
| 11 | Fire extinguishing methods | Aerosol | |
| 12 | Battery box size (depth × width × height) | 1095±5 / 790±5 / 246±5mm | / |
| 13 | Battery box weight | ≤ 330Kg | / |
Full functioning
Storage and charging , adaptable to various scenarios;
Modular design, MPPTT , STS , ATS can be matched as desired
Intelligent and friendly
Power grid friendly, active support, quick response;
Intelligent algorithm, efficient operation and extended lifespan
Safe and reliable
Intelligent management, rapid fault diagnosis;
Comprehensive monitoring, multi-level intelligent protection
Flexible and convenient
96-192kWh , flexible choice;
Easy to install and easy to operate.

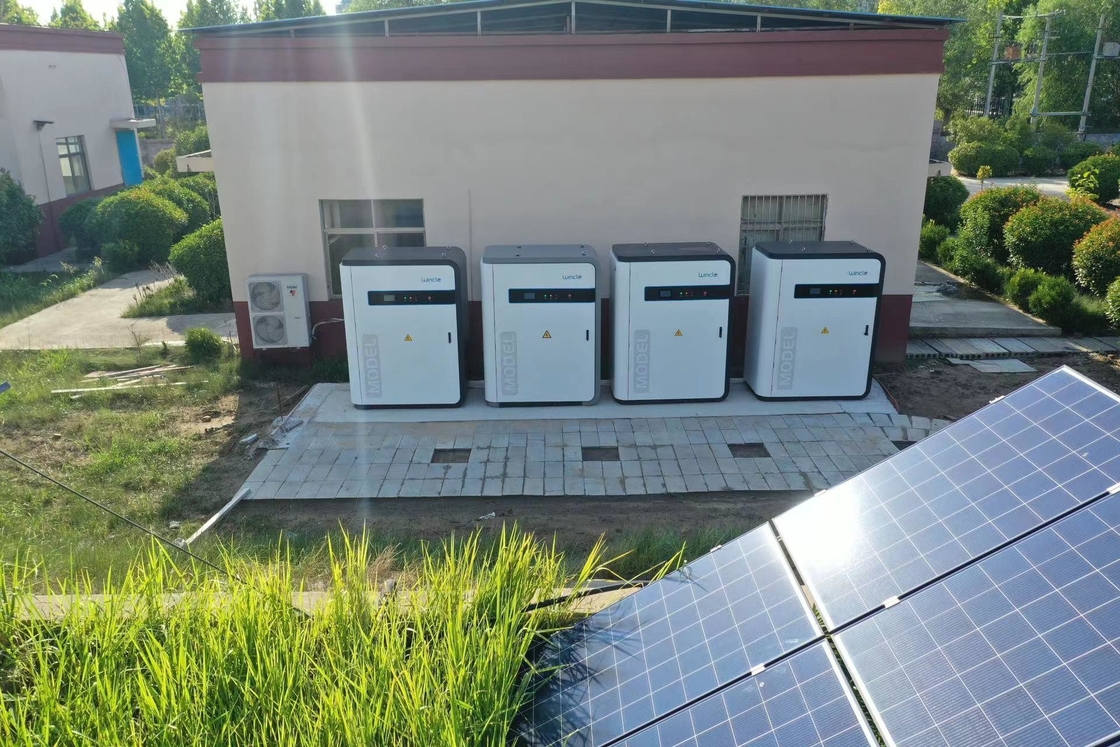

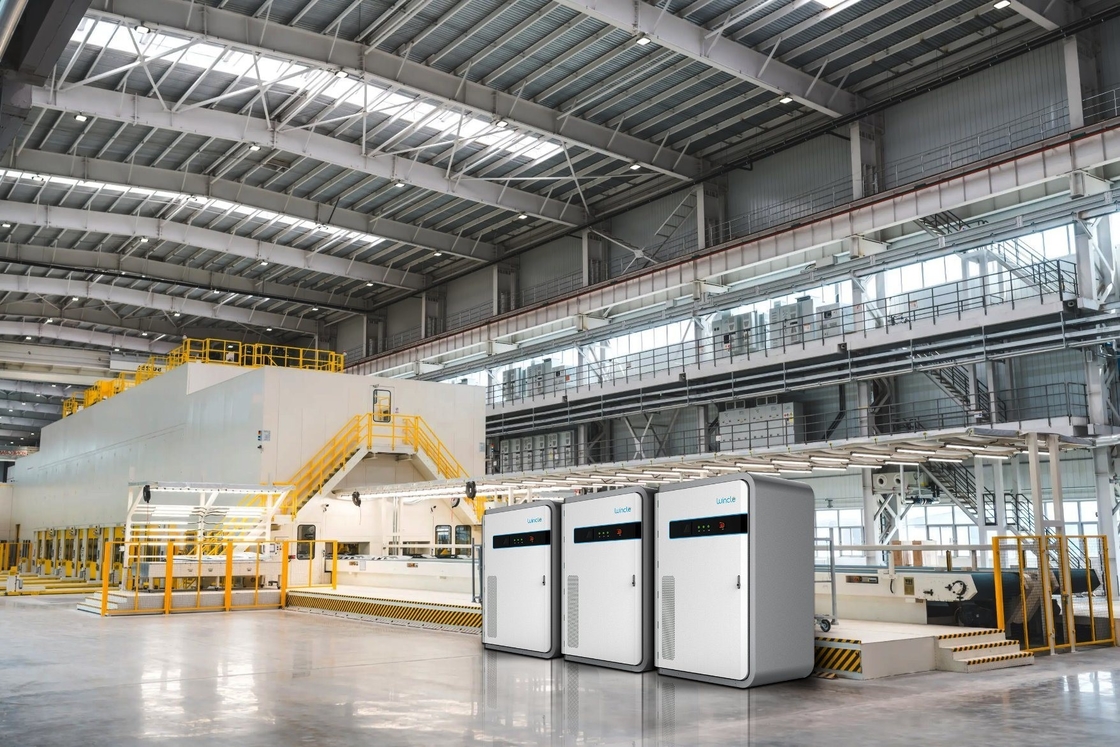

Application
An Expert Maker of LiFePO4 and NCM battery for Electric vehicle and Energy Storage system
Soundon New Energy established in 2011, which is invested by Sound Global (stock :HK00967) and stock jointed by Sound Environment (SZ000826). With a registered capital of $392 million , is an enterprise engage in technology innovation, product design and marketing of battery cathode materials, high capacity lithium ion batteries .
Our products are widely used in public lives, military affairs, aviation and transportation, energy, communication and information etc. Soundon has lithium-ion cathode material department, lithium-ion battery department and electric vehicle department, each department is in independent operation.Soundon New Energy has the ability of production 50,000 tons NCM&LiFePO4 battery Cathode material, 6 GWh high capacity li-ion battery every year.
Soundon has passed ISO9000-2015, ISO14001-2015 and IATF16949-2016
Our advantage
Soundon industrial park covers an area of 2 million square meters, with ten automatic production lines, all production line applied advanced equipment and famous brand facilities (most of R&D and QC instrument were imported from the US, Japan and UK) which are manned by 1,000 workers.
The technical laboratory testing is able to perform test independently, finish physical and chemical analysis, and another projects test and data analysis accurately, and issue supported technical report.
In fact, we are very proud of working with several famous companies such as DANA(American) ,SAFT(France), which have become satisfied with our services and high-quality products.
R&D sources
The technical laboratory testing is able to perform test independently, finish physical and chemical analysis, and another projects test and data analysis accurately, and issue supported technical report.
We have created a well-organized environment of research and development. With a total of 2000 m2of laboratory space, the factory is equipped with more than 200 high-tech machines, apparatuses and equipments. Through our years' efforts, we have gradually developed to become the leading manufacturer of lithium ion battery
QC introduction
our company Obtained ISO9001-2008 ,ISO 14001 and ISO/TS16949 certification, applied the financial ERP systems and the modern administration management system and passed all kinds of the quality standards.
Our factory has a complete Q.A. & Q.C.system. We own authorized sets of analyzing instruments with high efficiency and high sensitivity.
Everyone are strives to meet or exceed the expectations of customers, and aims to constantly improve both quality and service of our product, to achieve much higher level on different aspects of company in the long run.
We also have framed a well defined quality management system under the supervision of quality inspectors.
The Quality System consists of 5 main parts below:
1. Quality Training
2. Incoming Quality Control
3. In-process Quality Control
4. Reliability Testing
5. Outgoing Quality Control
Soundon have a full-scale produce qualification such as ISO 9000:2015, ISO 140001:2015, ISO/TS 16949 and OHSA18001-2007 certification. Mostly of lithium battery products gain the national and safety explosion-proof and export permit. like CE, CB, UN38.3 and RoHS ,R100 international certification, Soundon aims to be your long-term partner, ensures product quality, on-time delivery, competitive price and user's equity!
Why choose us?
1. The factory covers an area 20,000 m2, have a series of automatic equipment& semi-automatic equipment, production capacity has reached 300,000pcs/day.Send your inquiry directly to us
