Product description

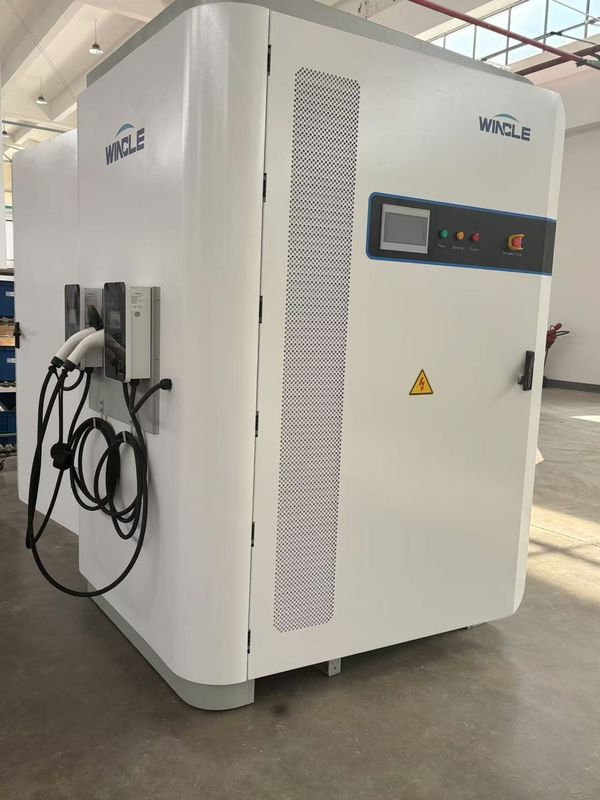

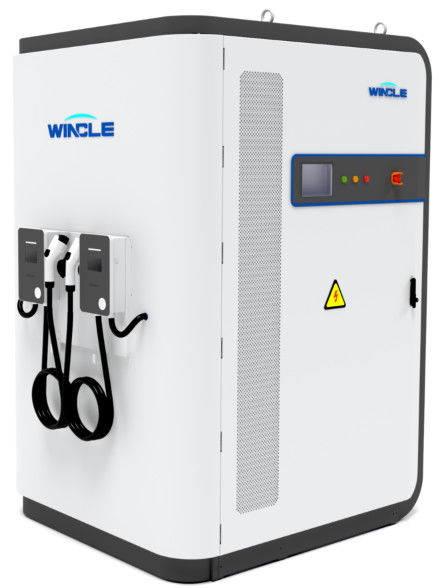

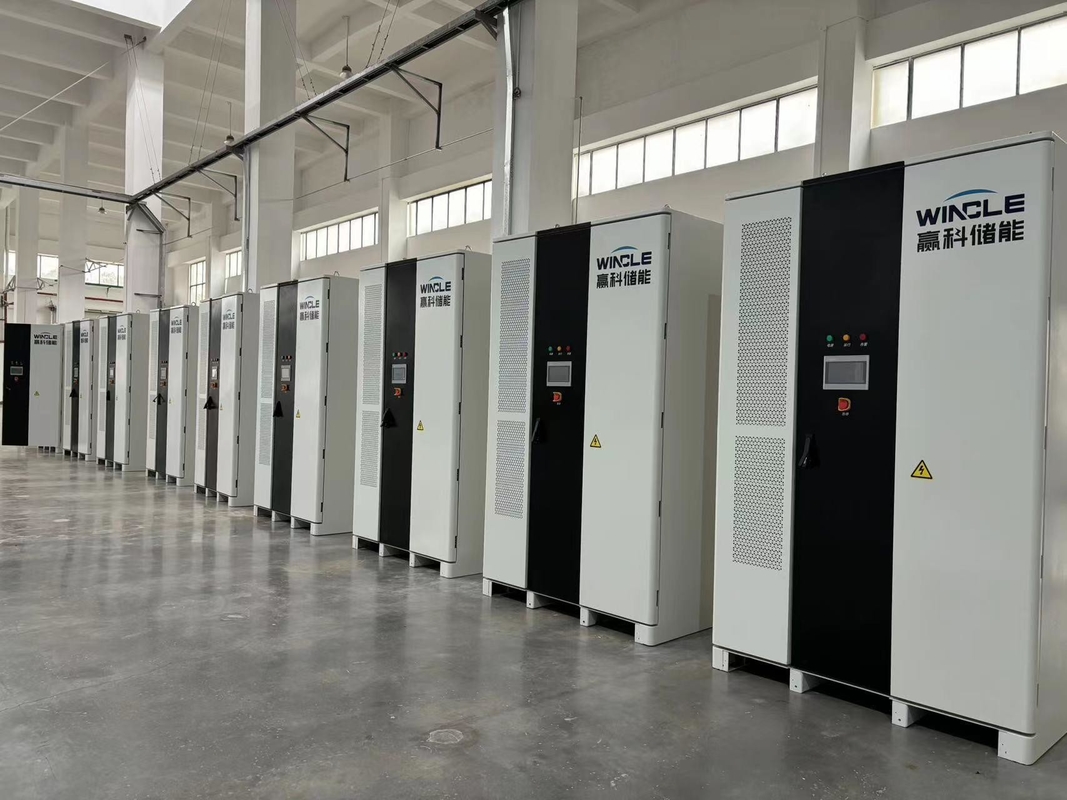

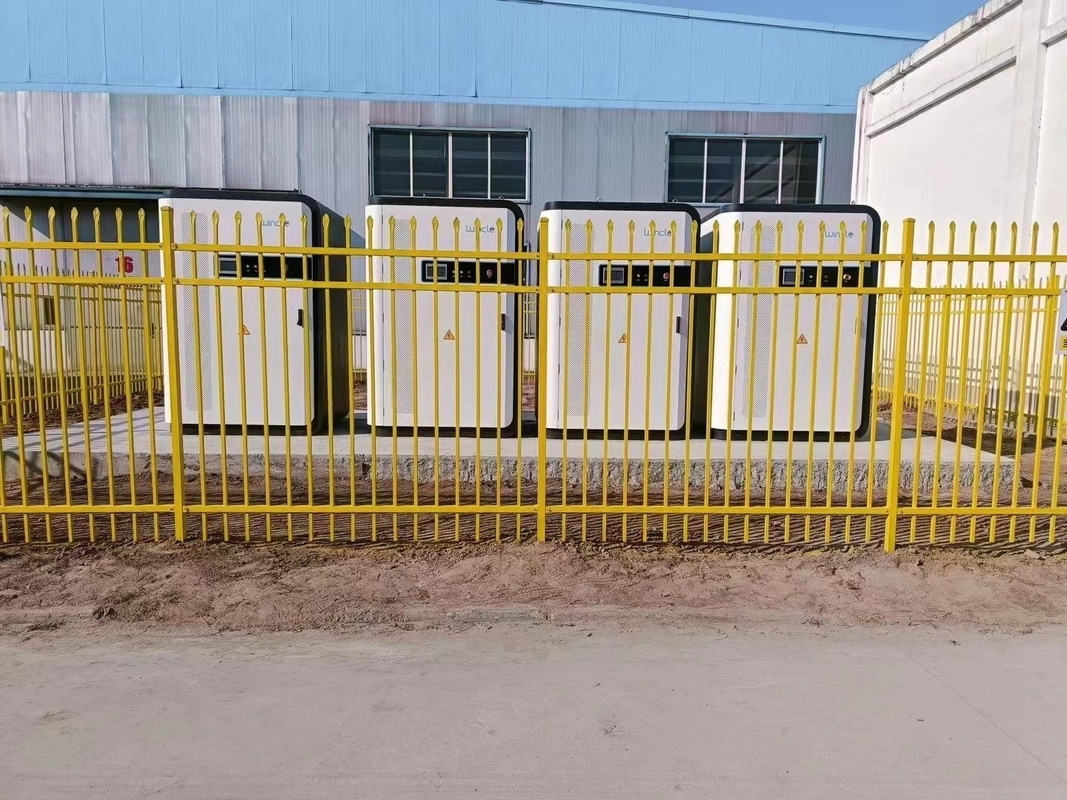

125kw 144KWh high efficiency ALL in one Liquid Cooling ESS cabinet for back up power supply and ev charge
Outdoor energy storage cabinet parameters
| No. | Category | Name | Parameter | ||
| 1 | System parameters | Rated energy (kWh) | 96.46 | 144.69 | 192.92 |
| 2 | Rated power (kW) | 60 | |||
| 3 | Protection level | IP54 | |||
| 4 | Auxiliary power supply | Self-powered/externally powered | |||
| 5 | Working humidity range | 10%～90% | |||
| 6 | Working temperature range (℃) | -30～55(＞45℃ derating) | |||
| 7 | Cabinet size (width × depth × height mm) | ( 1750 ±10)×( 1435 ±10)×( 2392 ±10) | |||
| 8 | Weight (kg) | 1900 ±100 | 2225 ±100 | 2550±100 | |
| 9 | Maximum working altitude (m) | 1500 | |||
| 10 | Cooling method | Smart liquid cooling | |||
| 11 | Fire extinguishing | Aerosol firefighting | |||
| 12 | Communication | Ethernet | |||
| 13 | Protocol | MODBUS TCP/IP | |||
| 14 | Connection | Three-phase four-wire | |||
| 15 | AC parameters | Rated charge and discharge power (kW) | 60 | ||
| 16 | Maximum charge and discharge power (kW) | 72 (60S 25℃) | |||
| 17 | Rated charge and discharge current (A) | 87 | |||
| 18 | Rated grid voltage (V) | 400 | |||
| 19 | Allowable grid voltage range (V) | 300～440 | |||
| 20 | DC parameters | Maximum DC voltage (V) | 1000 | ||
| 21 | Minimum DC voltage (V) | 150 | |||
| 22 | DC voltage operating range (V) | 150 ～1000 | |||
| 23 | DC side maximum current (A) | 180 | |||
Applicaiton chart
Cell parameter
314Ah large capacity prismatic battery cell
| No. | Name | Specifications | Condition |
| 1 | Battery capacity (Ah) | 314Ah | 25±2℃ 0.5C constant current charging to 3.65V, 3.65 V constant voltage charging to the current ≤ 0.05C |
| 2 | Working voltage(V) |
2.5～3.65V @0℃＜T<55℃ 2.0V～3.65V@-20℃＜T≤0℃ |
/ |
| 3 | Battery AC internal resistance (mΩ) | ≤0.30mΩ | AC1kHz |
| 4 | Charging temperature (℃) | 0～55℃ | / |
| 5 | Discharge temperature (℃) | -20～55℃ | / |
| 6 | Battery weight (kg ) | 5.8±0.3kg | / |
| 7 | Standard discharge power (W) | 502.4W | 25±2℃ |
| 8 | Maximum continuous discharge power (W) | 502.4W | 25±2℃, SOC≥20% |
| 9 | Cell size (mm) | 174.1+1.0 /-2.0×7 2+3.0 /-1.0× 207.2±1 mm | / |

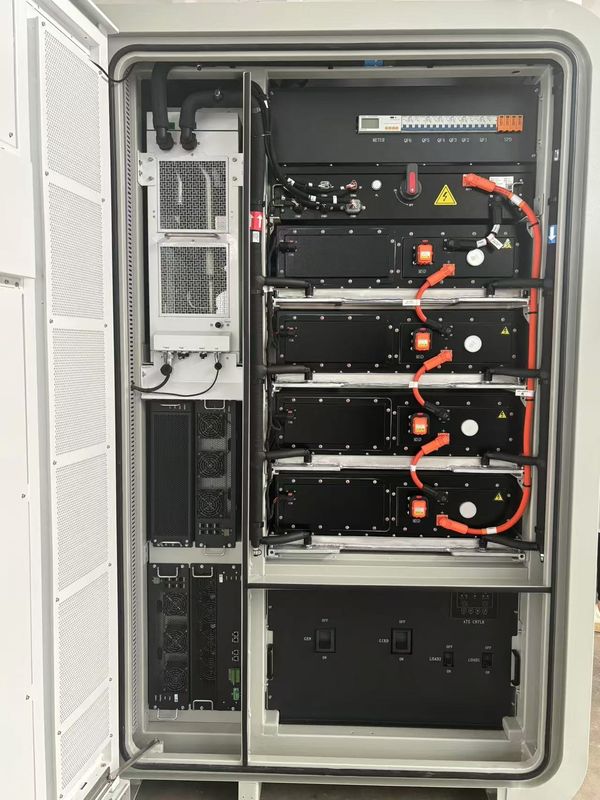

Battery Module parameters
| No. | Name | Specifications | Condition |
| 1 | configuration | 1P48S | 1P48S |
| 2 | Nominal voltage | 153.6V | / |
| 3 | Voltage range | 120～175.2V | 2.5V to 3.65V |
| 4 | Nominal energy | 48.2kWh | 25℃±2,0.5C |
| 5 | Standard charge and discharge current | 157A | / |
| 6 | Maximum charge and discharge current | 201A | / |
| 7 | Installation method | Plug-in type | / |
| 8 | Charging temperature | 0～55 ℃ | / |
| 9 | Discharge temperature | -20～55 ℃ | / |
| 10 | Cooling method | Liquid cooling | / |
| 11 | Fire extinguishing methods | Aerosol | |
| 12 | Battery box size (depth × width × height) | 1095±5 / 790±5 / 246±5mm | / |
| 13 | Battery box weight | ≤ 330Kg | / |
