Product description

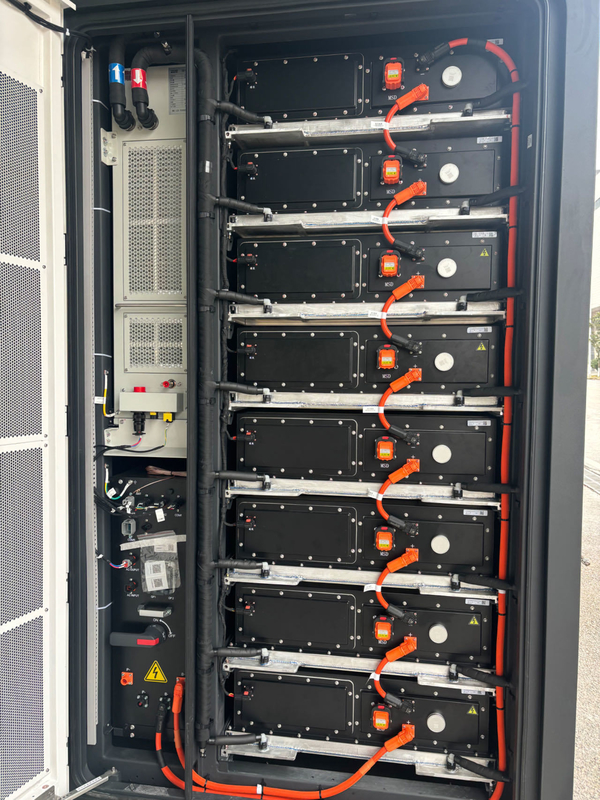

385KWh DC liquid cooling outdoor energy storage cabinet system
Outdoor energy stsorage cabinet parameters
| No. | Category | item | Parameter |
| 1 | System | Rated capacity | 385kWh |
| 2 | Max cycle efficiency | >93 % | |
| 3 | Usable enegy | 358kWh | |
| IP grade | IP54 | ||
| 7 | Auxiliary power supply | Self-powered / external power supply | |
| 8 | Working humidity range | ≤95 % | |
| 9 | Working temperature range | -30ºC~55ºC ( >45ºC Derating ) | |
| Dimension | 1578mm*1380*2500mm | ||
| Weight | 3900±150kg | ||
| 10 | Maximum working altitude | 1500 m | |
| 11 | Cooling mode | Intelligent liquid cooling | |
| 12 | Fire extinguishing | Aerosol | |
| 13 | Communication | RS485/CAN | |
| 14 | Communication protocol | Modbus TCP/CAN2.0 | |
| 15 | Mode of connection | Three-phase four-wire |
| 21 | DC | Max DC voltage | 1401.6V |
| 22 | Min DC voltage | 960V | |
| 23 | DC voltage working range | 960~ 1401.6V | |
| 24 | DC side max current | 187.5A |
Cell parameter
314Ah large capacity prismatic battery cell
| NO. | Name | Product Specification | Condition |
| 1 | Cell capacity | 314Ah | 0.5C constant current at 25±2ºC charge to 3.65V then constant voltage 3.65V charge till charged current declines to ≤0.05C |
2 | Working voltage | 2.5~3.65V @0ºC<T<55ºC 2.0V~3.65V@-30ºC<T≤0ºC | N.A |
| 3 | Battery AC internal resistance | ≤0.30mΩ | AC 1kHz |
4 | Working temperature (charging) | 0~55ºC | N.A |
5 | Working temperature (discharging) | -20~55ºC | N.A |
| 6 | Weight | 5.8±0. 3kg | N.A |
| 7 | Standard discharging power | 502.4W | 25±2ºC |
8 | Max Continuous Discharging Power | 502.4W | 25±2ºC |
| 9 | Cell dimension | 174.1+1.0/-2.0×72+3.0/-1.0× 207.2±1mm | N.A |
Battery Module parameters
NO. | Name | Product specification | Condition |
| 1 | Configuration | 1P48S | 1P48S |
| 2 | Nominal voltage | 153.6V | N.A |
3 | Voltage range | 120~ 175.2V | Cell protection 2.5V to 3.65V |
| 4 | Nominal energy | 48.2kWh | 25ºC±2, 0.5C |
5 | Standard charge & discharge current | 157A | N.A |
6 | Max continuous charge & discharge current | 201A | N.A |
| 7 | Installation mode | Plug-in type | N.A |
8 | Charging temperature | 0~55ºC | N.A |
9 | Discharging temperature | -20~55ºC | N.A |
| 10 | Cooling mode | Liquid cooling | N.A |
| 11 | Fire extinguishing | Aerosol | |
| 12 | Battery box size (W x D x H) | 1095±5/790±5/246±5mm | N.A |
| 13 | Pack weight | ≤330Kg | N.A |
This series of energy storage systems have the following characteristics:
High level of integration, for design, construction, commissioning, and operation and maintenance;
Modular construction, plug and play, short installation period, easy operation and maintenance;
Intelligent monitoring, real-time online, intelligent monitoring with early warning, making the system safe and reliable;
Standardized expansion, with strong scalability, can be combined with standard modules to expand products with different capacities according to requirements;
Application
An Expert Maker of LiFePO4 and NCM battery for Electric vehicle and Energy Storage system
Soundon New Energy established in 2011, which is invested by Sound Global (stock :HK00967) and stock jointed by Sound Environment (SZ000826). With a registered capital of $392 million , is an enterprise engage in technology innovation, product design and marketing of battery cathode materials, high capacity lithium ion batteries .
Our products are widely used in public lives, military affairs, aviation and transportation, energy, communication and information etc. Soundon has lithium-ion cathode material department, lithium-ion battery department and electric vehicle department, each department is in independent operation.Soundon New Energy has the ability of production 50,000 tons NCM&LiFePO4 battery Cathode material, 6 GWh high capacity li-ion battery every year.
Soundon has passed ISO9000-2015, ISO14001-2015 and IATF16949-2016
Our advantage
Soundon industrial park covers an area of 2 million square meters, with ten automatic production lines, all production line applied advanced equipment and famous brand facilities (most of R&D and QC instrument were imported from the US, Japan and UK) which are manned by 1,000 workers.
The technical laboratory testing is able to perform test independently, finish physical and chemical analysis, and another projects test and data analysis accurately, and issue supported technical report.
In fact, we are very proud of working with several famous companies such as Dyson (the UK) and Axell Wireless (Sweden), Intel (American), Share'n Go (Italy), (India),SAFT(France), which have become satisfied with our services and high-quality products.
R&D sources
The technical laboratory testing is able to perform test independently, finish physical and chemical analysis, and another projects test and data analysis accurately, and issue supported technical report.
We have created a well-organized environment of research and development. With a total of 2000 m2of laboratory space, the factory is equipped with more than 200 high-tech machines, apparatuses and equipments. Through our years' efforts, we have gradually developed to become the leading manufacturer of lithium ion battery
QC introduction
our company Obtained ISO9001-2008 ,ISO 14001 and ISO/TS16949 certification, applied the financial ERP systems and the modern administration management system and passed all kinds of the quality standards.
Our factory has a complete Q.A. & Q.C.system. We own authorized sets of analyzing instruments with high efficiency and high sensitivity.
Everyone at Super strives to meet or exceed the expectations of customers, and aims to constantly improve both quality and service of our product, to achieve much higher level on different aspects of company in the long run.
We also have framed a well defined quality management system under the supervision of quality inspectors.
The Quality System consists of 5 main parts below:
1. Quality Training
2. Incoming Quality Control
3. In-process Quality Control
4. Reliability Testing
5. Outgoing Quality Control
Soundon have a full-scale produce qualification such as ISO 9000:2015, ISO 140001:2015, ISO/TS 16949 and OHSA18001-2007 certification. Mostly of lithium battery products gain the national and safety explosion-proof and export permit. like CE, CB, UN38.3 and RoHS ,R100 international certification, Soundon aims to be your long-term partner, ensures product quality, on-time delivery, competitive price and user's equity!
Why choose us?
1. The factory covers an area 20,000 m2, have a series of automatic equipment& semi-automatic equipment, production capacity has reached 300,000pcs/day.Send your inquiry directly to us
