Product Description

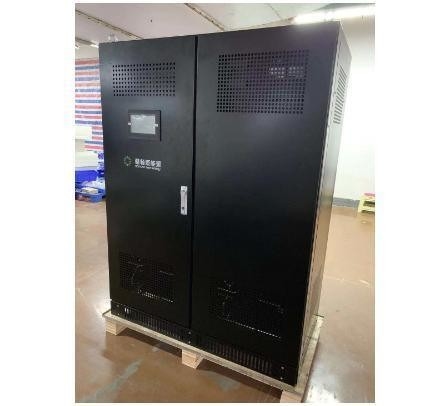

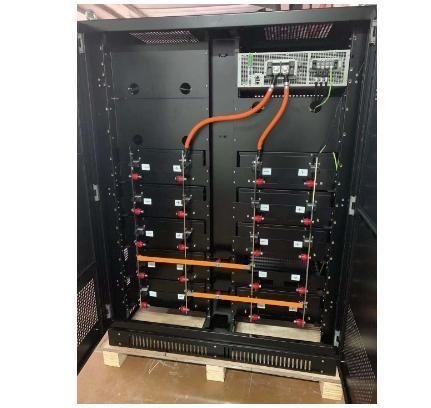

48V 700Ah Storage Battery Systems For Intellengent Building Power Supply
Battery pack power supply parameter
| Content | Request | Remark |
| AC Parameter | ||
| Battery Rated Energy | 32.76kWh | |
| Rated Power | 7kW | |
| AC Access | Single Phase 220V | |
| Rated Grid Frequency | 50 Hz | |
| Allowed Grid Frequency | 47.5 Hz~51.5 Hz | |
| Total current distortion rate | ≤5% | |
| System Efficiency | 85% | |
| DC Parameter | ||
| Battery type | NCM Lithium battery | |
| Rated Capacity | ≥700Ah | According to GBT31467.2 |
| Rated Voltage | 47.45V | |
| Work Voltage | 39V~54.6V | |
| System Discharge Efficiency | 95% | At room temperature |
| Weight(kg) | System: About 500kg | |
| Dimension(mm) | 1200*640*1800 | Width*Depth*Height |
| IP Class | IP20 |
Energy storage system function :
1) Balance function; Protect the cells from the imbalance and maintain the capacity of the battery cell to extend the life cycle.
2) Voltage detection of the cells; Provide the accurate voltage measurement of overcharging and discharging, at the same time, offer the reliable data for the equilibrium control strategy.
3) The multi point temperature collection of the singe module; Provide the same number of collection point as voltage, and strictly monitor the temperature to extend the life cycle.
4) Estimate the distributed SOC of every single battery pack series; Power control to every single battery pack series, and improve the capacity and life cycle of the module.
5) Precise current detection; Provide precise data for SOC estimation, meanwhile protect the battery from over current to avoid the damage.
6) Strong extendibility of the three-layer modular structure; response flexibly to the needs of voltage and capacity of different battery pack series
7) The system adopts the CAN2.0 high-speed bus data transmission to ensure the data and information feedback efficiently and timely
8)Provide various high-speed communications interface to connect the peripheral equipment include the Ethernet, RS485,CAN,RS232 and so on
Application :
Energy storage station ,home energy storage ,Emergency power supply ,Smart microgrid , power grid frequency regulation ,distributed energy sources system
