Place of Origin:
China
Brand Name:
Soundon
Certification:
CE, MSDS, ROHS,UL
Model Number:
SD-EV-345.6-136

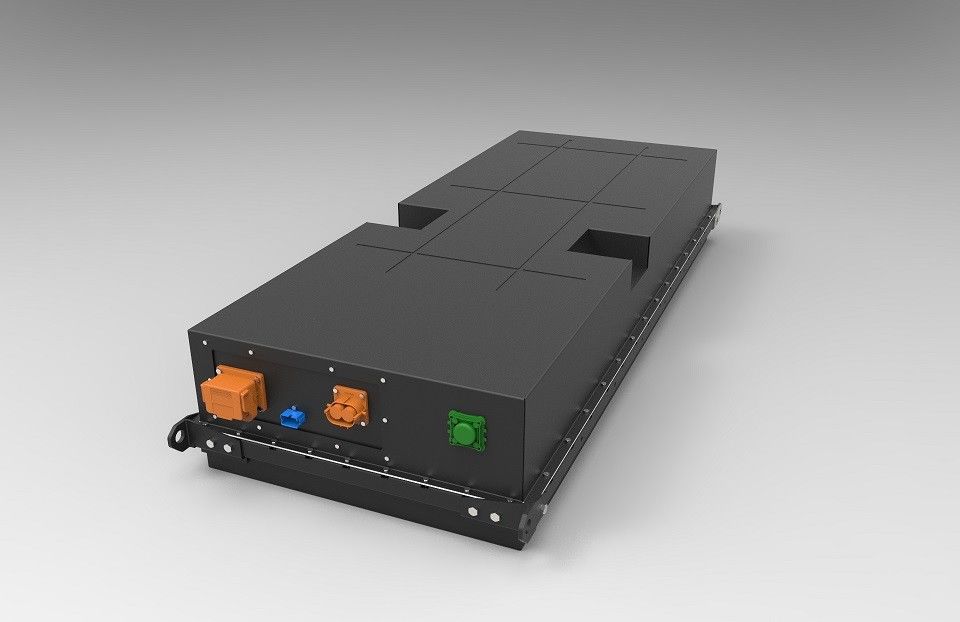

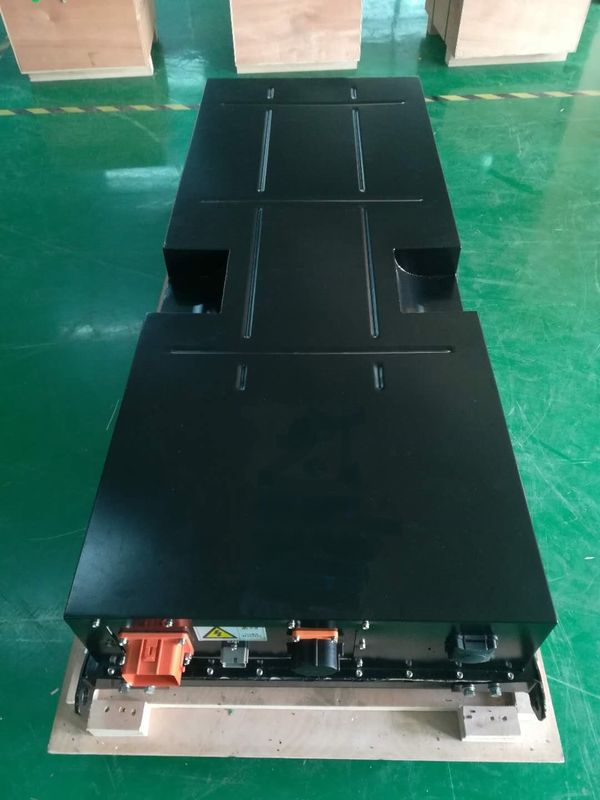

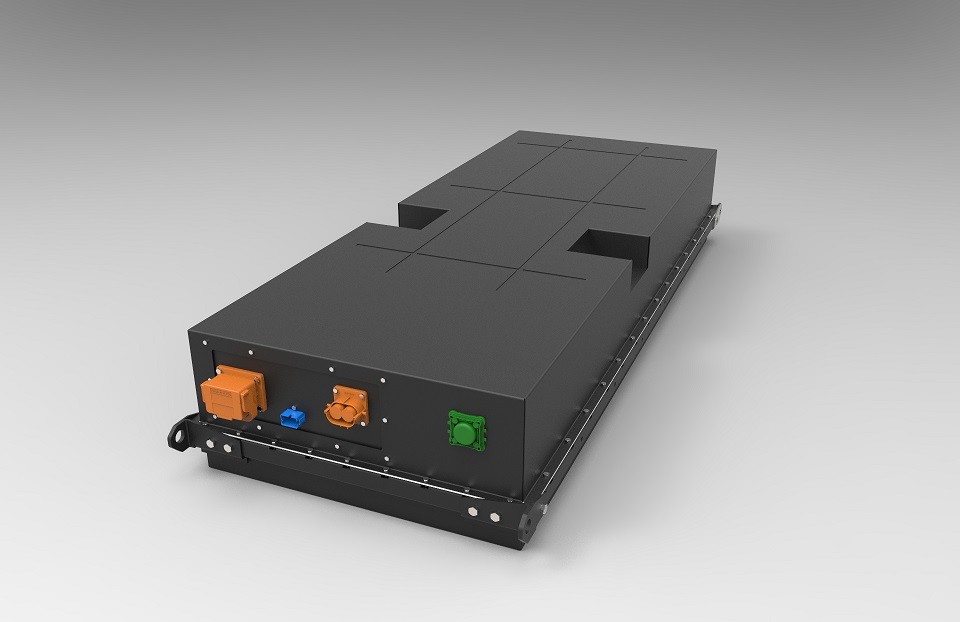

345.6V136Ah Electric Truck Battery With High Current Rating And High Energy Density
| Rated voltage/Capacity :345.6V136Ah |
| Total energy:8.78Kwh |
| Configuration:8P6S |
|
Steady charge overcurrent(A):170A
|
|
Steady discharge overcurrent(A) :300A
|
| Transient charging current (A):150A |
| Transient discharge current (A):350A |
| Maximum total voltage(V):403V |
| minimum total voltage(V):288V |
| Working Temp. Range :Discharge: -20℃~45℃ ;Charge: 0℃~45℃ |
| Storage Temperature:-10℃~45℃ |
|
Relative Humidity:5%~95% |
| Protection Level :IP65 |
| Cooling Method :Air cooling |
Battery cell parameters
typical Capacity voltage: 3.6V17Ah 1C discharging (25±2 degree)
Charging end of voltage :4.2V
Standard charging and discharging current :0.5C
max continuous charge and discharge current :1C
max pluse charging current :1.5C(15-45 degree) < 30S
max pluse discharging current :3C (15-45 degree) < 30S
Electric Truck with Soundon battery
Soundon New Energy industrial park
